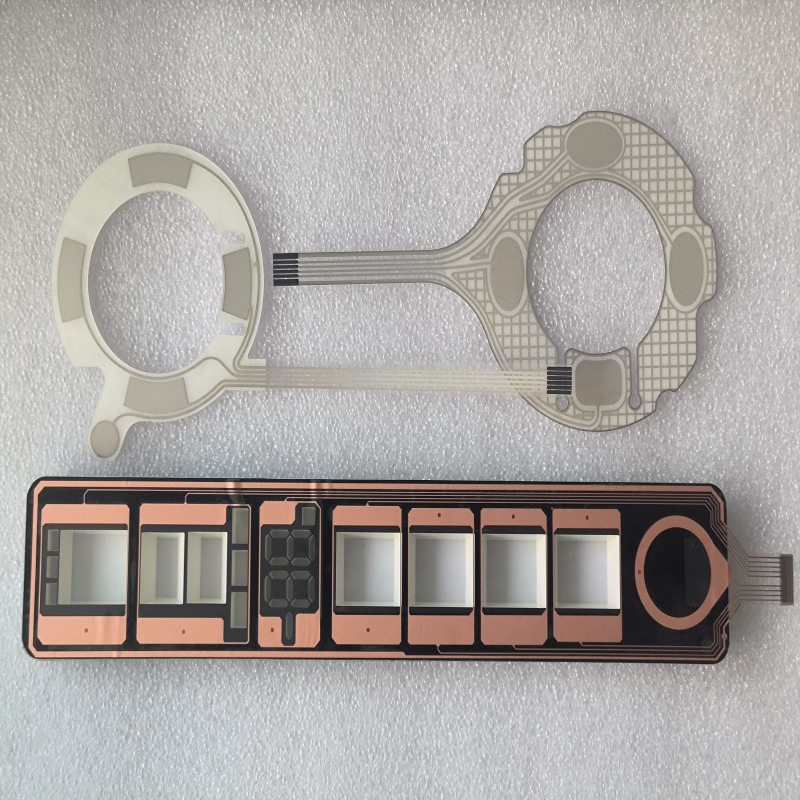

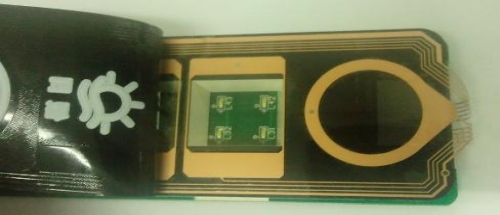

Membrane Switch Capacitive Button



Packaging Methods

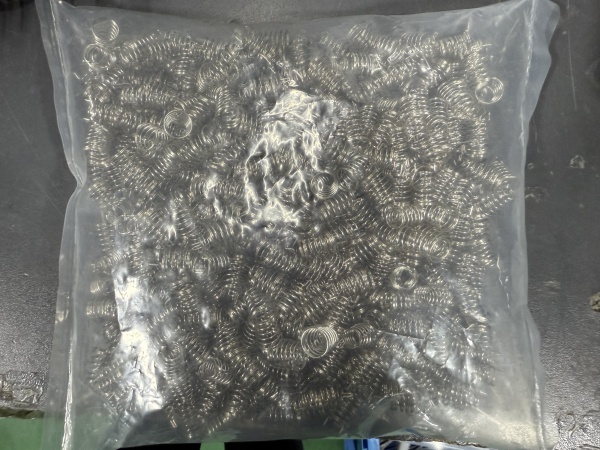

1. Bulk (Plastic bag)

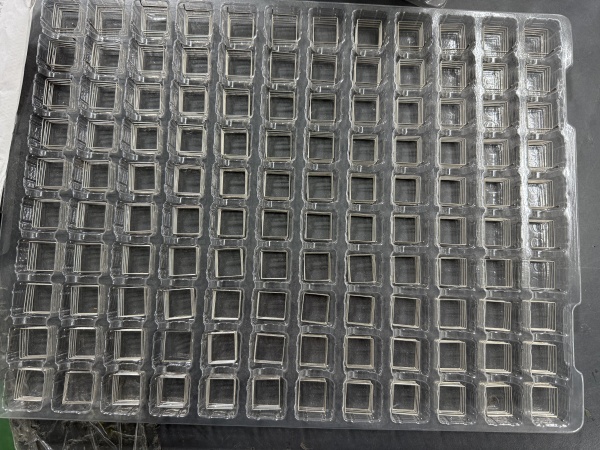

2. Plastic tray

3. Tape & Reel (For SMT)

What are the membrane switch capacitive buttons widely used for?

The capacitive touch springs can be applied in various fields such as household appliances, medical equipment, robotics, wearable technology, automated devices, tools, gas, instrumentation, automotive industries, and more. For example, the capacitive touch springs are now very commonly found in household appliances such as induction cookers, microwaves, ovens, refrigerators, air conditioners, coffee machines, and audio systems, and so on.

FAQ for Membrane Switch Capacitive Button

Q1: How does a capacitive button provide a better user experience than a traditional mechanical membrane switch?

A: Unlike mechanical switches that require physical travel and can wear out over time, the membrane switch capacitive button offers a zero-force, non-mechanical interface. This eliminates mechanical fatigue and provides a sleek, modern touch feel. Because it is acid and alkali resistant and features high anti-corrosion properties, it remains responsive and sensitive even after millions of cycles in harsh environments.

Q2: Can these capacitive buttons work reliably through thick decorative overlays or glass panels?

A: Yes, they are engineered for high penetration. These buttons are compatible with various capacitive touch MCUs and can sense touch through non-conductive overlays like glass, plastic, or acrylic. By customizing the working height (3mm-50mm) and the top capacitive touch area, we ensure stable signal coupling regardless of your panel’s thickness or material.

Q3: Is it possible to integrate these buttons into a waterproof or sealed control panel design?

A: Absolutely. One of the greatest advantages of using these touch springs in a membrane switch assembly is the ability to create a completely sealed interface. Since there are no moving parts or openings required for buttons, your device can achieve superior dust and moisture protection, making it ideal for household appliances like induction cookers and refrigerators.

Q4: What design considerations should we follow to prevent accidental triggering in compact layouts?

A: To ensure precision, we can customize the dimension of the top capacitive touch area and the spring tension to match your UI layout. Additionally, by selecting the appropriate welding foot shape (such as a Single-pin or U-shape pin) for secure PCB mounting, we minimize electrical noise and cross-talk, ensuring that each button responds only to intentional user contact.

Q5: We are transitioning from a prototype; how quickly can we get custom-shaped springs for our membrane assembly?

A: We support rapid development cycles. For new membrane switch designs, we provide free samples typically within 3 weeks. For urgent projects, we can fast-track the design and sample production to within one week, provided you share your PDF, DXF, or STEP drawings with our engineering team.
